Advanced Radiant Systems? Single Stage Unitary Range (ES) offers an entry grade unitary system with the highest radiant outputs available. By utilizing a high efficiency reflector with a dependable and efficient burner, these heaters take on the cost competitive marketplace without sacrificing quality or efficiency.

The Single Stage Unitary Range is also available in a harsh environment model. The ESH model will tackle those areas where conditions are at their most demanding.

Model ES

A heavy duty industrial/commercial single stage infrared heater with an enclosed burner.

Model ESH

Includes all of the features of the ES Model plus a potted module, sealed burner housing and heat-treated aluminized tube for harsh environments. Stainless Steel housing is available. CSA approved for outdoor use.

FEATURES

  • Rates 40,000 to 220,000 BTU/HR
  • Separated controls compartment
  • Self-diagnostic ignition module
  • 100% Parabolic aluminum reflectors
  • Heavy duty couplings
  • Direct spark ignition
  • 24V direct wire for thermostat
  • Jet stream burner
  • Vented or unvented
SKU: ES/ESH
Request a Quote

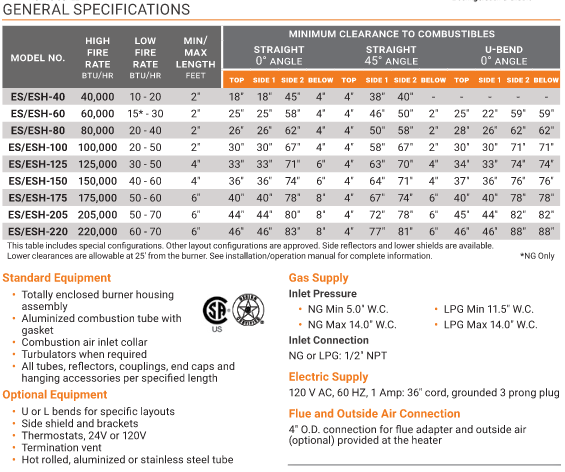

STANDARD EQUIPMENT

  • Burner housing assembly
  • Aluminized combustion tube with gasket
  • Combustion air inlet collar
  • Turbulators when required
  • All tubes, reflectors, couplings, end caps and hanging accessories per specified length

OPTIONAL EQUIPMENT

  • U or L bends for specific layouts
  • Side shield and brackets
  • Thermostats, 24V or 120V
  • Termination vent
  • Hot rolled, aluminized or stainless steel tube

ES Dimensions
