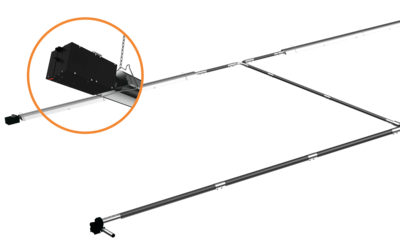

Advanced Radiant Systems’ negative pressure multiburner systems are field assembled, low intensity infrared heaters that are easy to install and maintain, and which were engineered with significant input from our customers. They are designed to provide economical operation and trouble-free service for years to come. Negative pressure Multiburner System The HBV negative pressure multiburner system is designed to employ two or more low intensity radiant tube heaters interconnected by a manifold tube to a vacuum pump that assists in the evacuation of products of combustion.

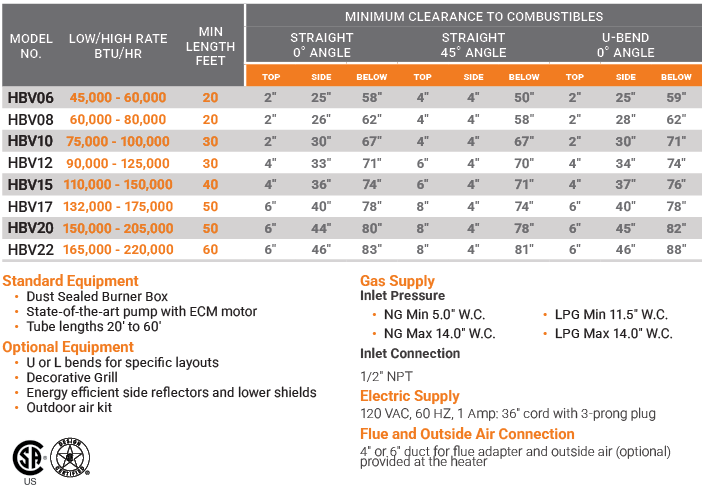

The individual heaters are configured to provide input rate from 60,000 to 220,000 Btu/h featuring a two-stage configuration. The high/low capability provides quicker recovery on high fire and economical steady operation on low fire. FEATURES - Rates 60,000 to 220,000 BTU/HR
- State-of-the-art pump with ECM motor
- Multi-zone capability (2 zone panel)
- Two-stage for comfort control
- Dust sealed burner box
- Easy setup and commissioning
- Fewer vents needed
- Up to 525,000 BTU/HR on single vent penetration
|
